Brand Name: ANNKE
Cable Length: 20m
Certification: CE
Hign-concerned Chemical: None
Model Number: DW81KD0-V3-R8CW
Origin: Mainland China
PCS of Camera: 8PCS
Resolution: 5 MP
Smart home platform: None

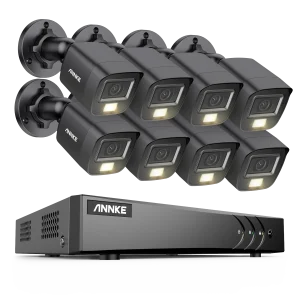

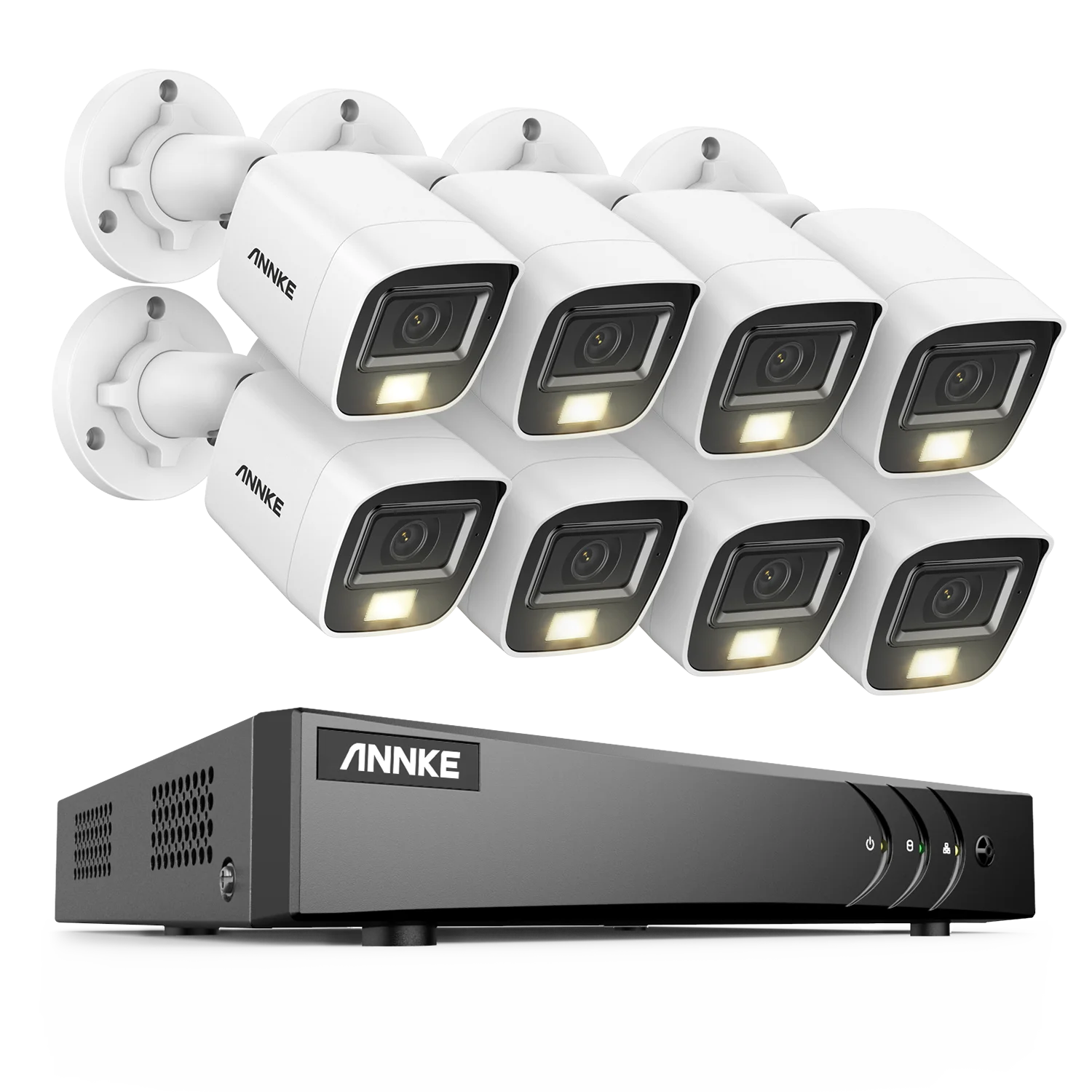

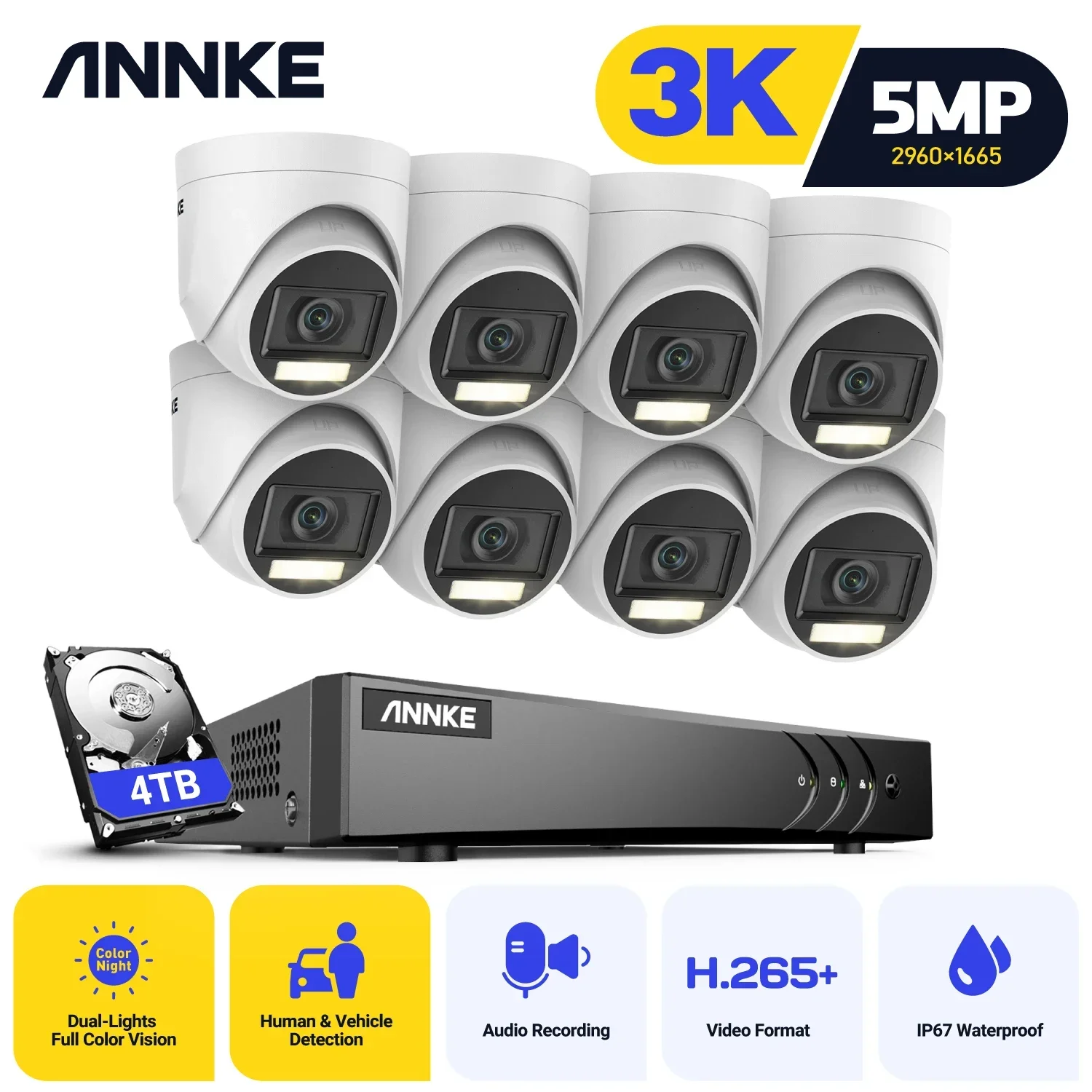

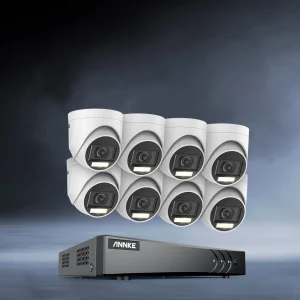

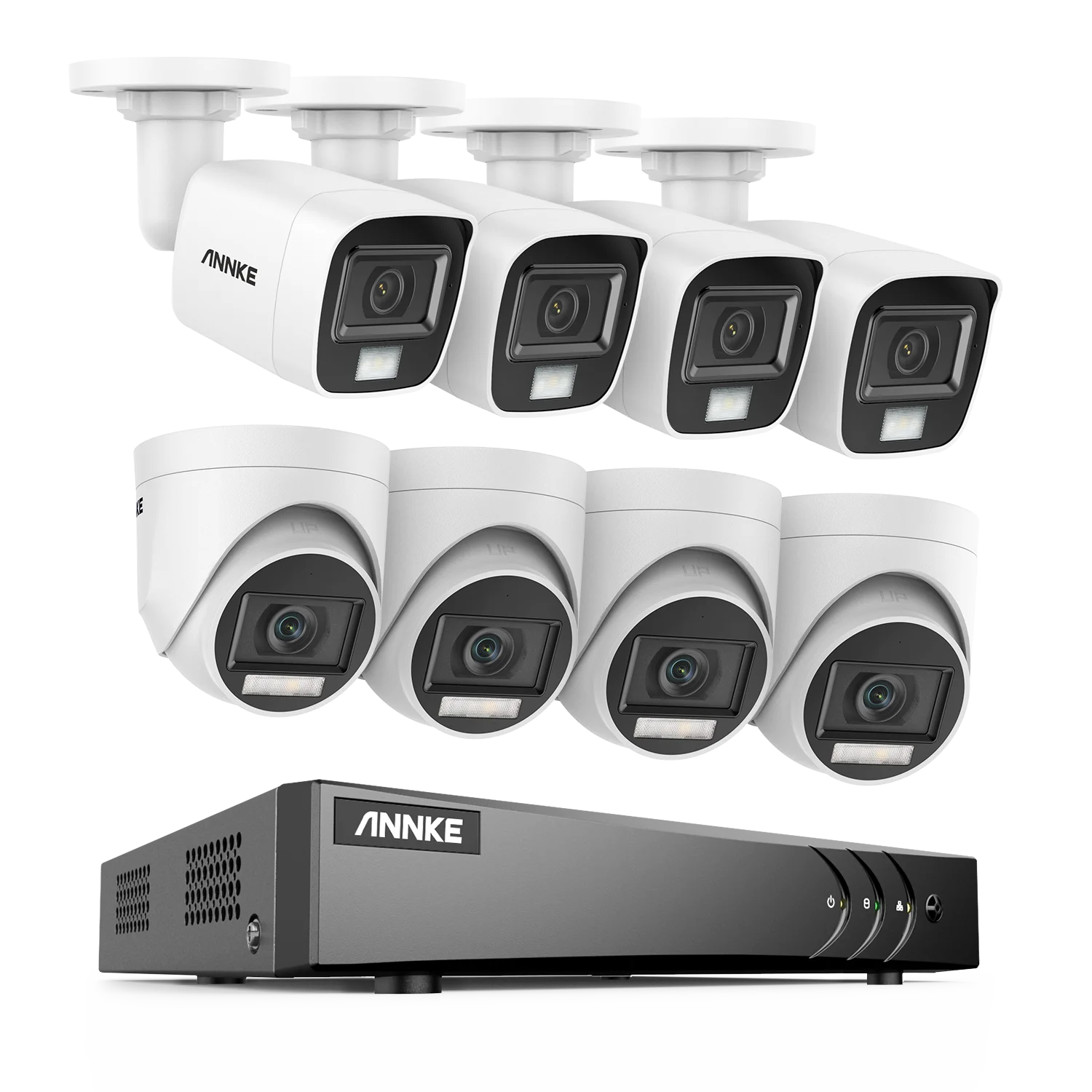

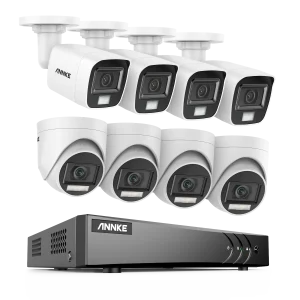

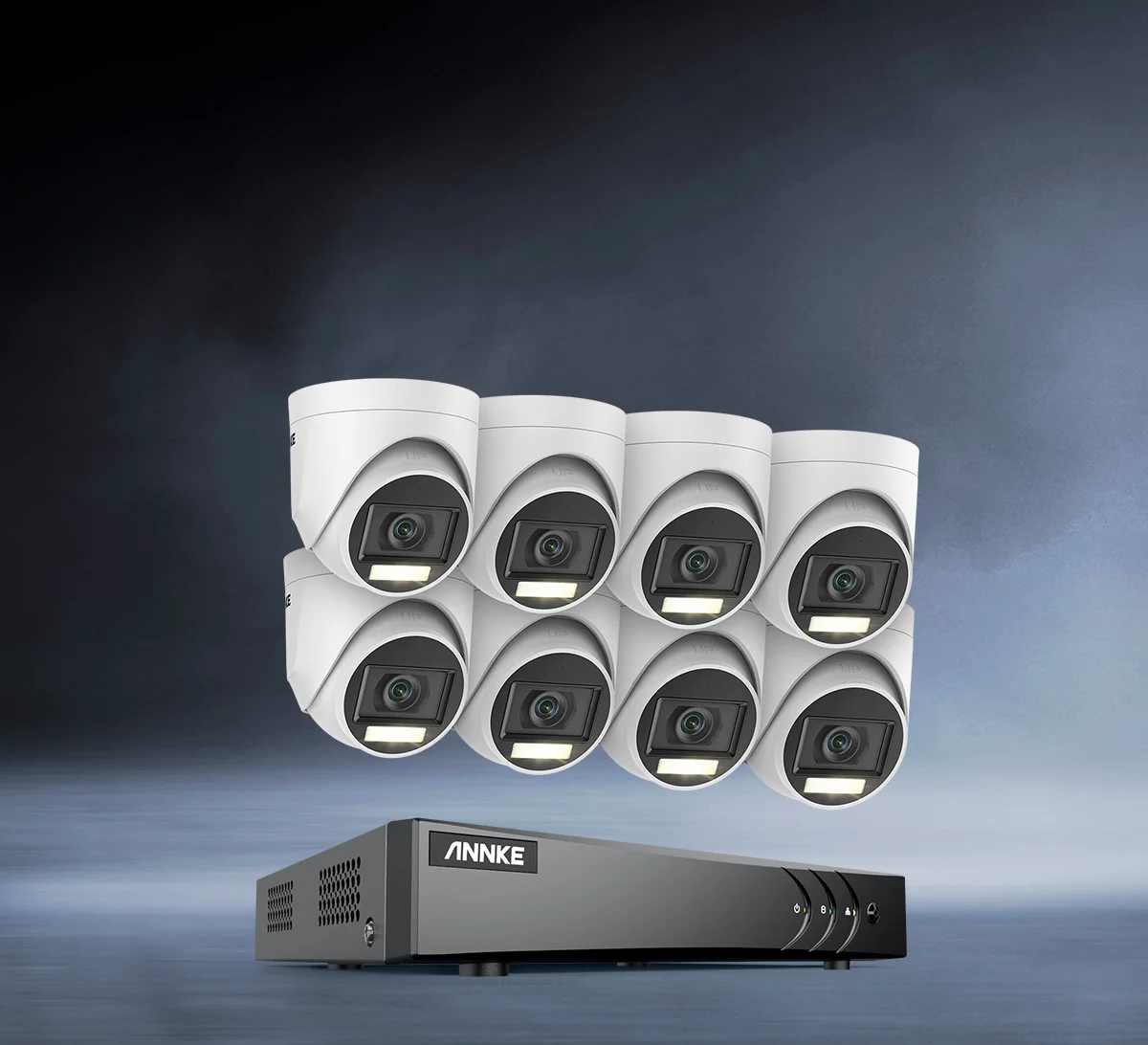

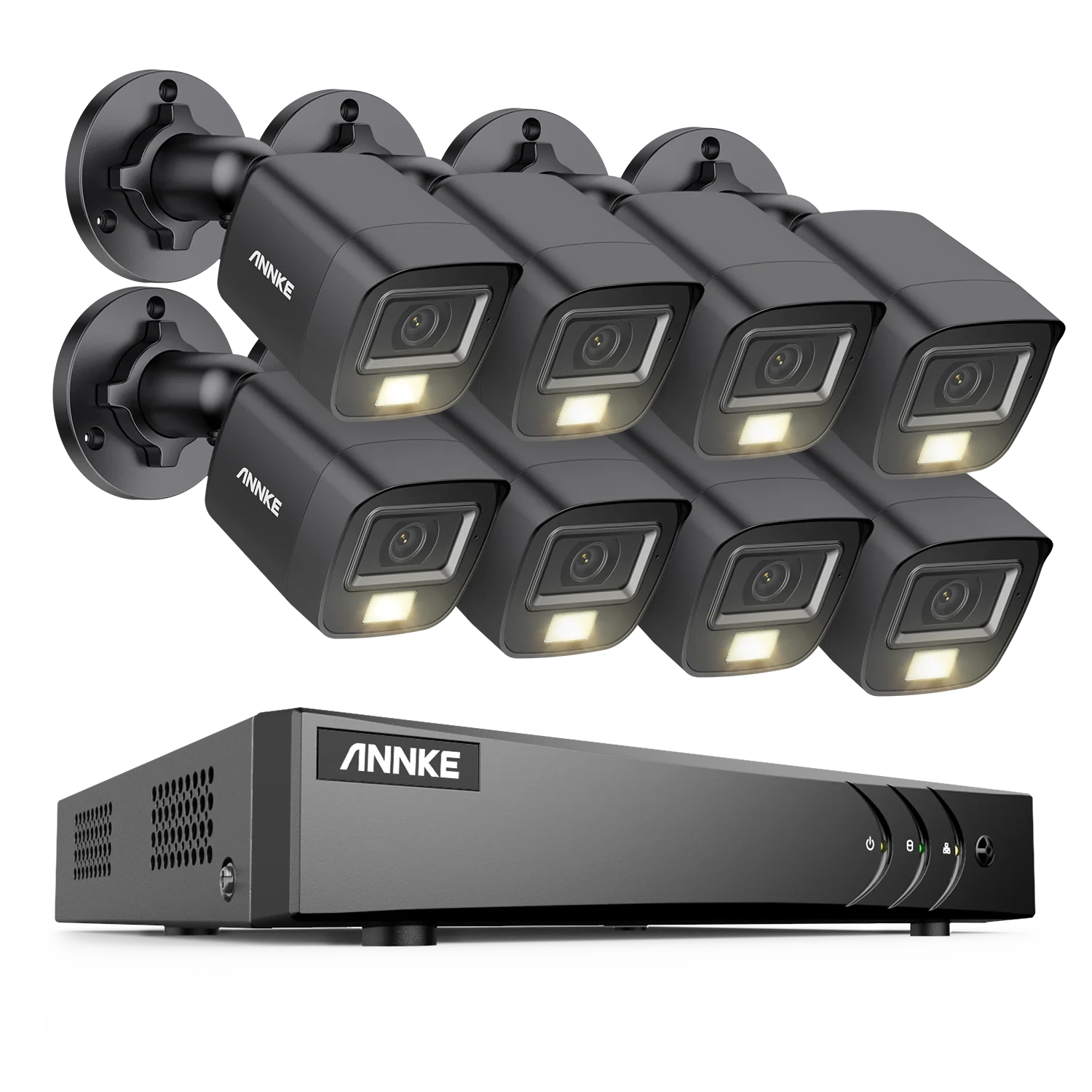

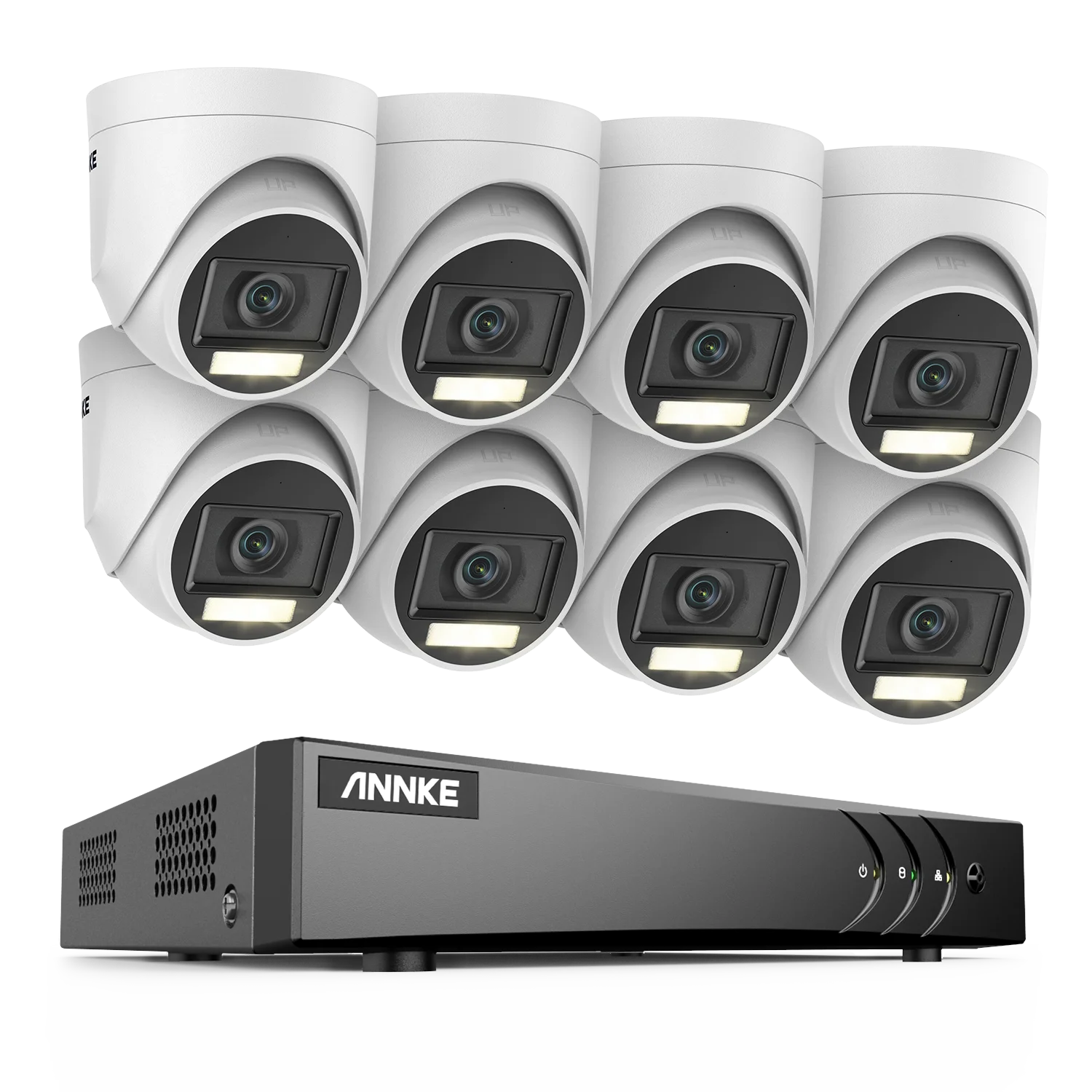

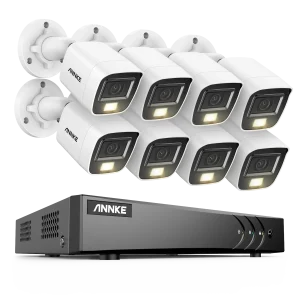

ANNKE 6MP Wired Security Camera System H.265 Pro+ DVR Surveillance with 8pcs 5MP PIR Outdoor Cameras IP67Weatherproof, Visual Alarm, 100ft Night Vision
Key Features:
High quality imaging with 3K, 2960 × 1665 resolution
2.8 mm fixed focal lens@F1.2
High quality audio with audio over coaxial cable, built-in mic
Up to 30m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS）
Water and dust resistant (IP67)
Specifications:
DVR:
· Up to 3K high definition live viewing

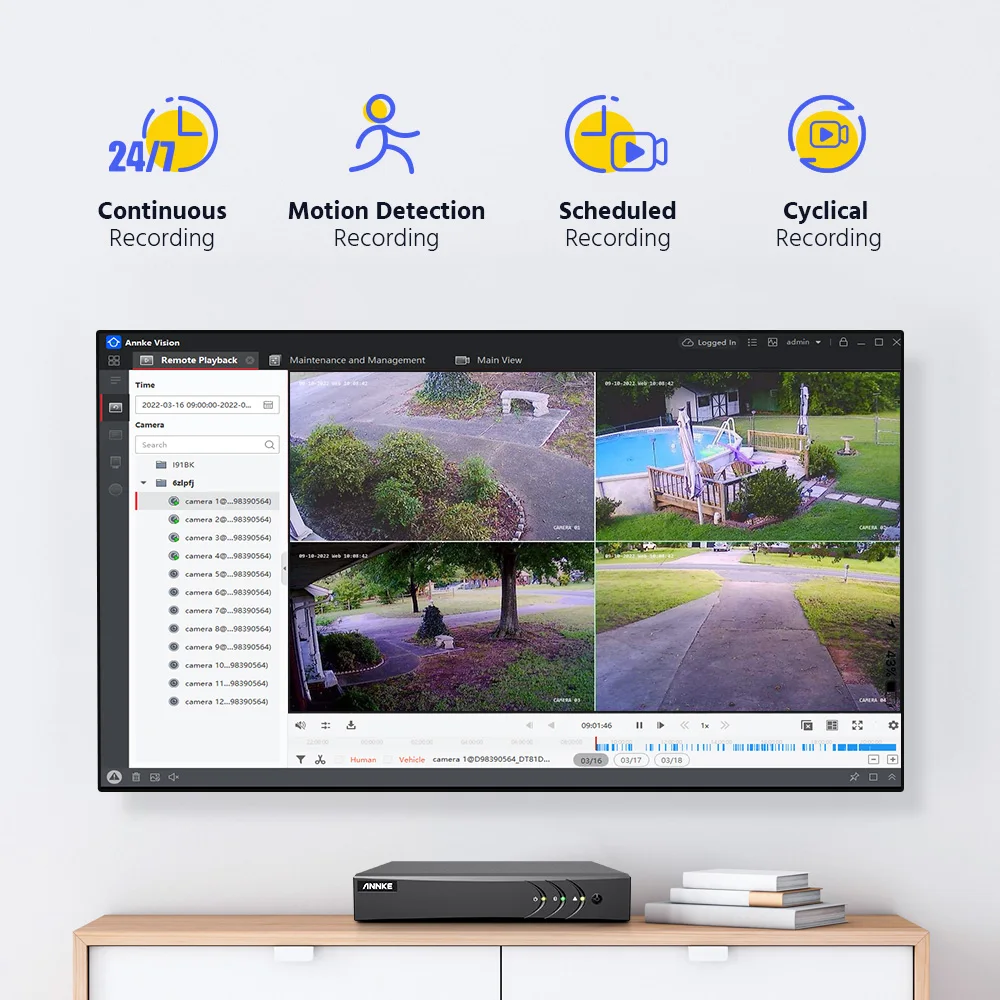

· Up to 3K Lite recording & playback
· Advanced H.265+ Video Compression

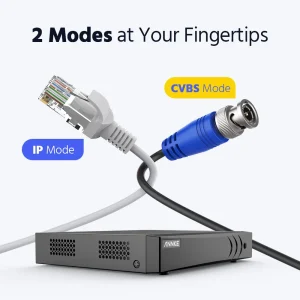

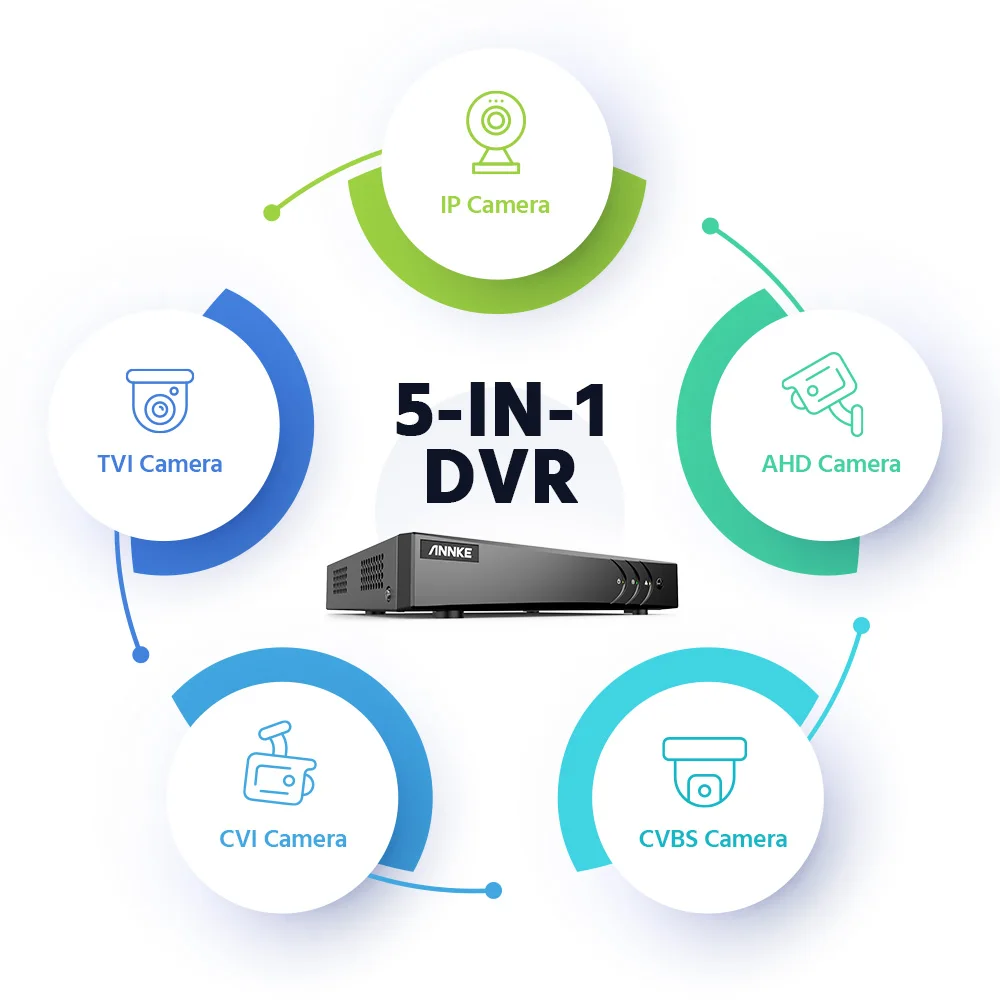

· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhone、iPad、Android mobile remote monitoring
· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels

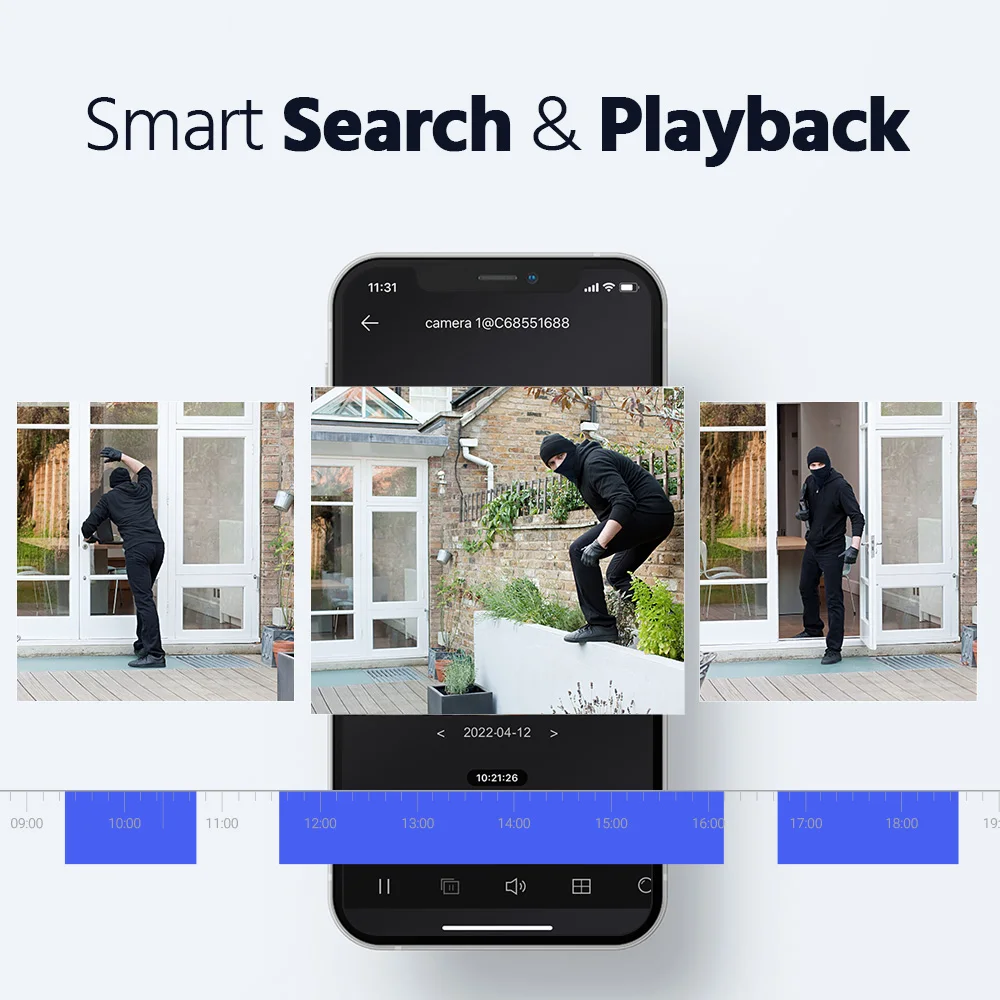

· Quick search by object or event type
· Audio via coaxial cable

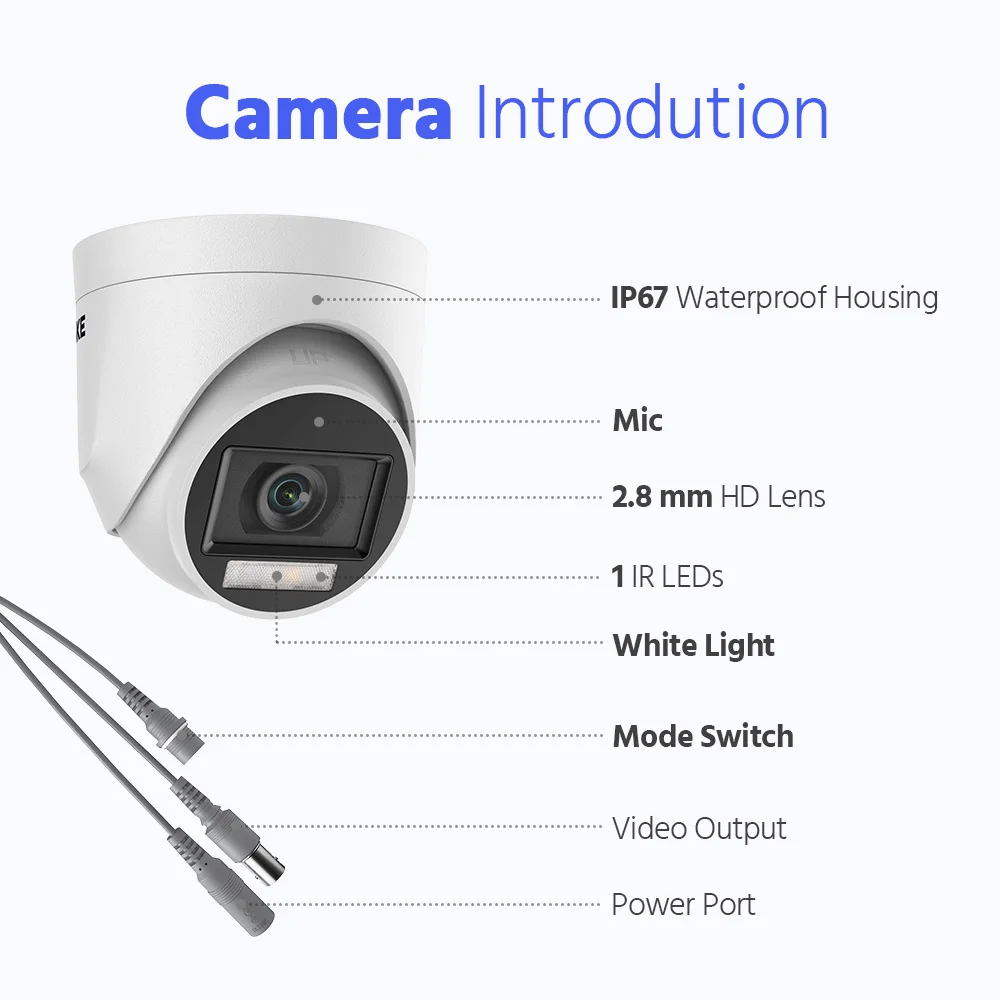

Camera:
High quality imaging with 3K, 2960 × 1665 resolution
2.8 mm fixed focal lens@F1.2
High quality audio with audio over coaxial cable, built-in mic
Up to 30m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS）
Water and dust resistant (IP67)

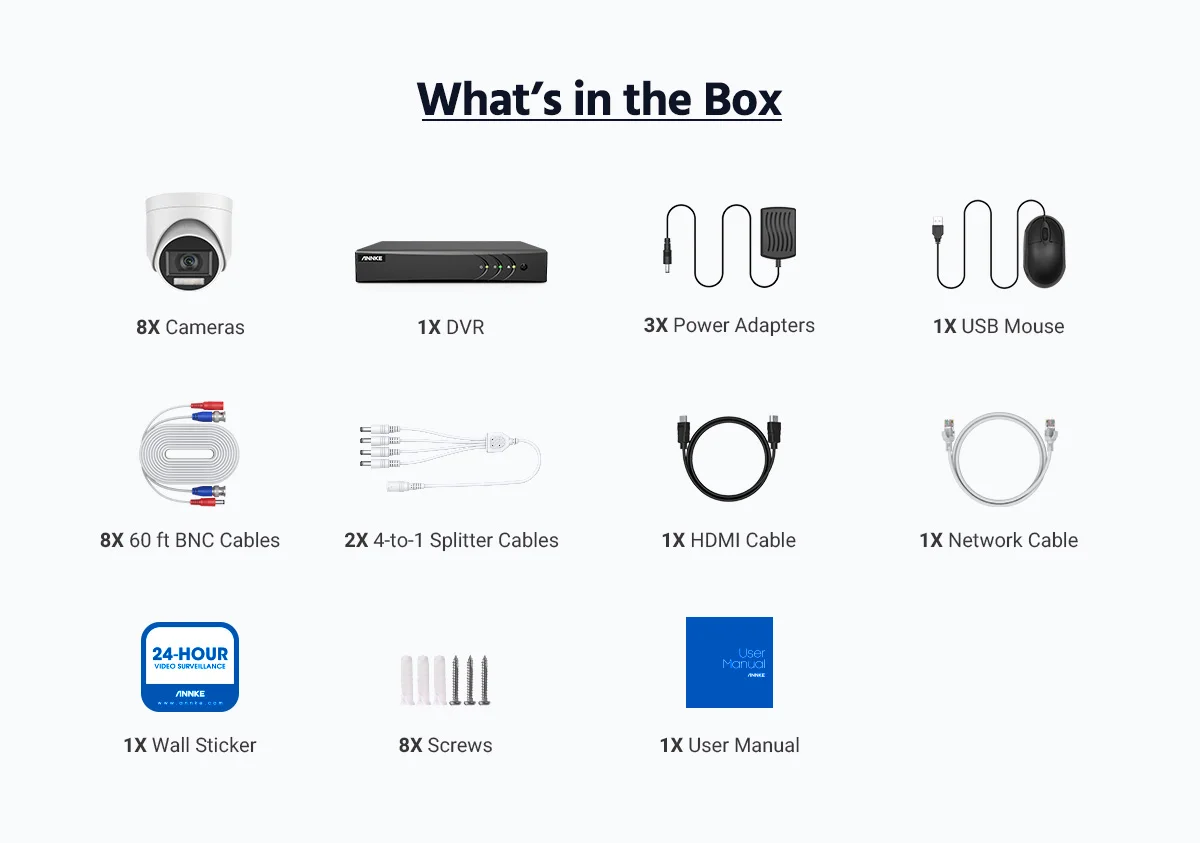

What’s included?
1 * 6MP Lite Surveillance DVR
1 * Power Adapter for DVR
1 * 5.9ft/1.8m HDMI Cable
1 * 3.2ft/1m Ethernet Cable
8 * 60ft/18.3m BNC Cables
1 * USB Mouse
1 * User Manual
1 * 4-to-1 Power Splitter
8 * Mounting Screw Kits
No/1T/2T/3T/4T HDD for your option

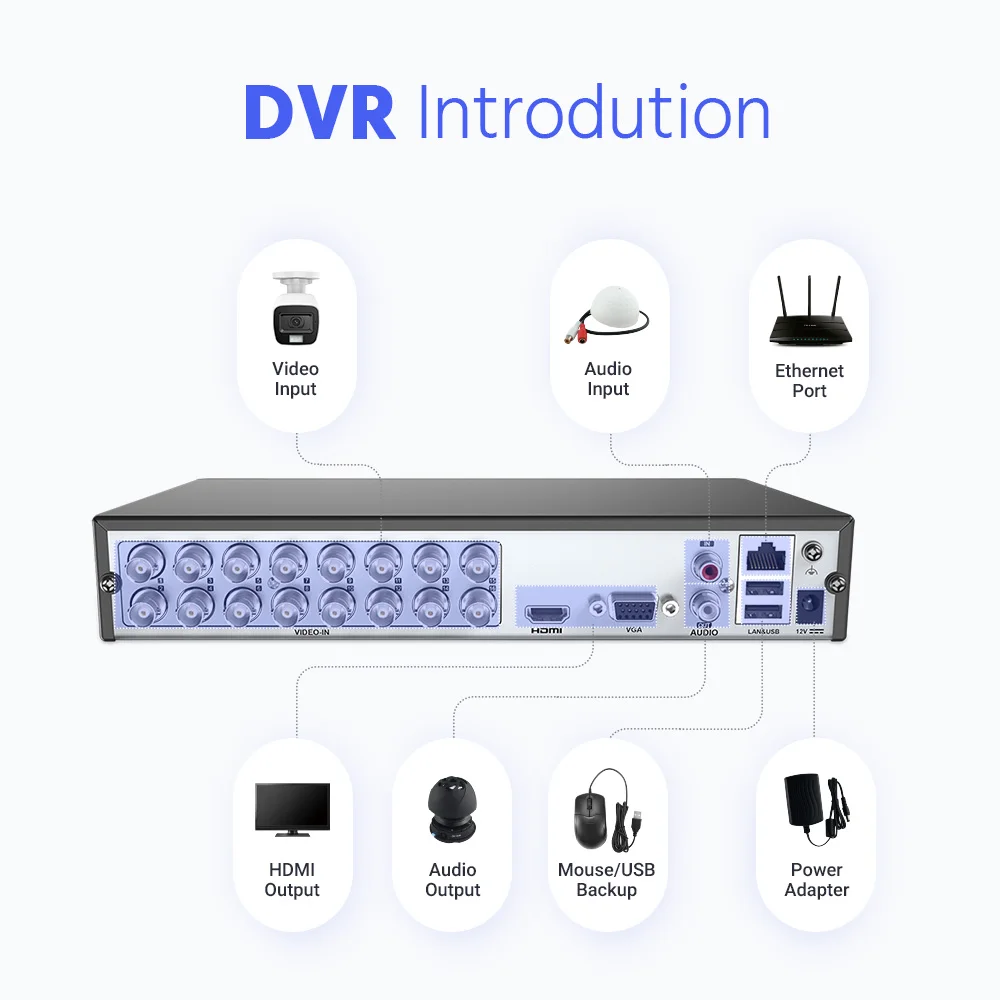

| DVR | ||
| Video & Audio | Video Compression | H.264+/H.264/H.265/H.265+ |

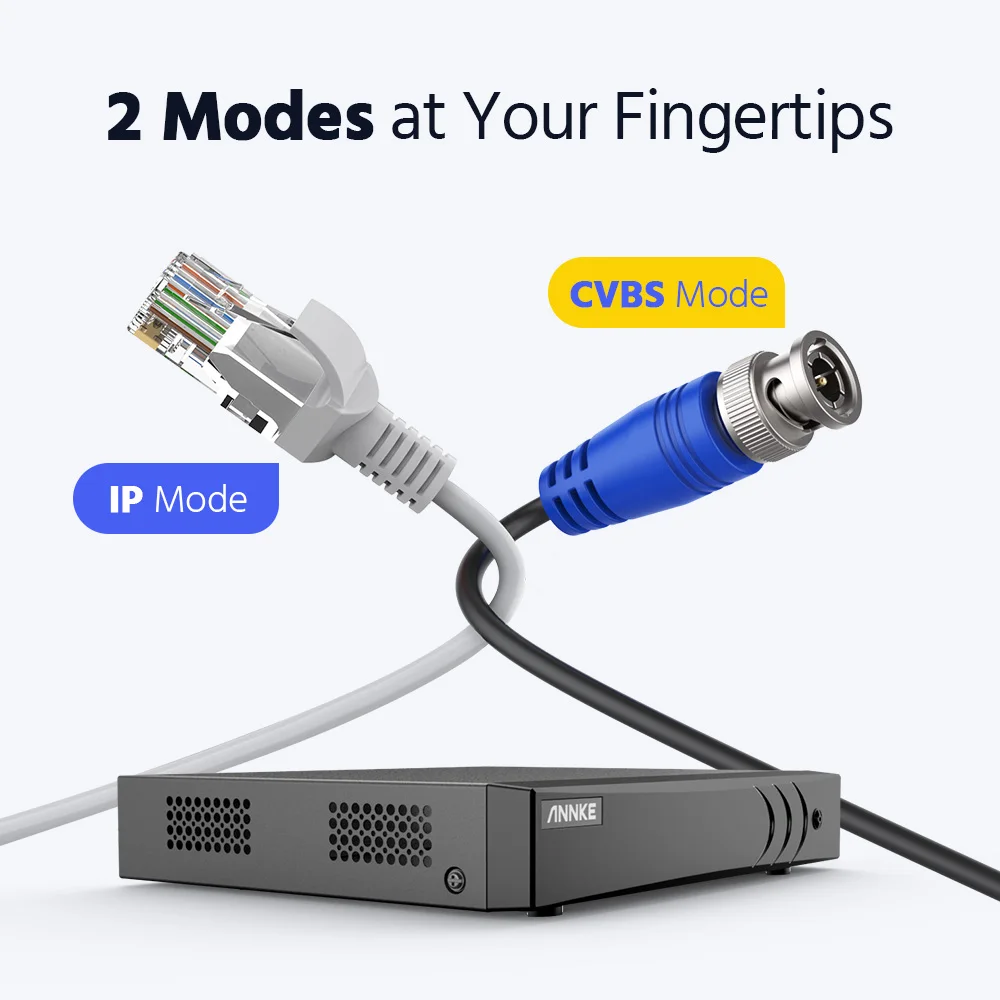

| Video Input | 8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on) | |
| Video Output | HDMI and VGA Up to 1080P | |
| Audio Input | 1-ch RCA,8-ch via coaxial cable | |
| Audio Output | 1-ch RCA | |
| Supported Camera Types | Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p; Support AHD Input: 4MP, 1080p, 720P; Support CVI Input: 4MP, 1080p, 720P; Support CVBS Input; Support IP Video Input：6MP/5MP/4MP/3MP/1080P/720P |
|
| Analog HD Playback Resolution | 3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps | |
| IPC Playback Resolution | Up to 6MP | |
| Max Playback Channel | 2-ch | |
| Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS | |
| Motion Detection 2.0 | All analog channels support human and vehicle detection to reduce false alarm | |
| Hard Drive | HDD | 1 SATA interface |
| HDD Capacity | Up to 10TB capacity | |
| External Interface | Network interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| USB | USB2.0x2 | |
| General | Operating Power | DC12V,≤ 12W (without HDD) |
| Working Temperature | -14 °F – 131 °F /-10 °C – 55 °C | |
| Dimensions(W x H x D) | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) | |
| Weight (without hard disk) | ≤ 1 kg (2.2 lb)(without HDD) | |
| Analog HD Camera | ||
| Camera | Image sensor | 3K CMOS Image sensor |
| Video Resolution | 2960 (H) × 1665 (V)(16:9) | |
| Signal System | PAL/NTSC | |
| Frame Rate | TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps CVI: 4 MP@25 fps/30 fps CVBS: PAL/NTSC |
|
| Lens | 2.8mm | |

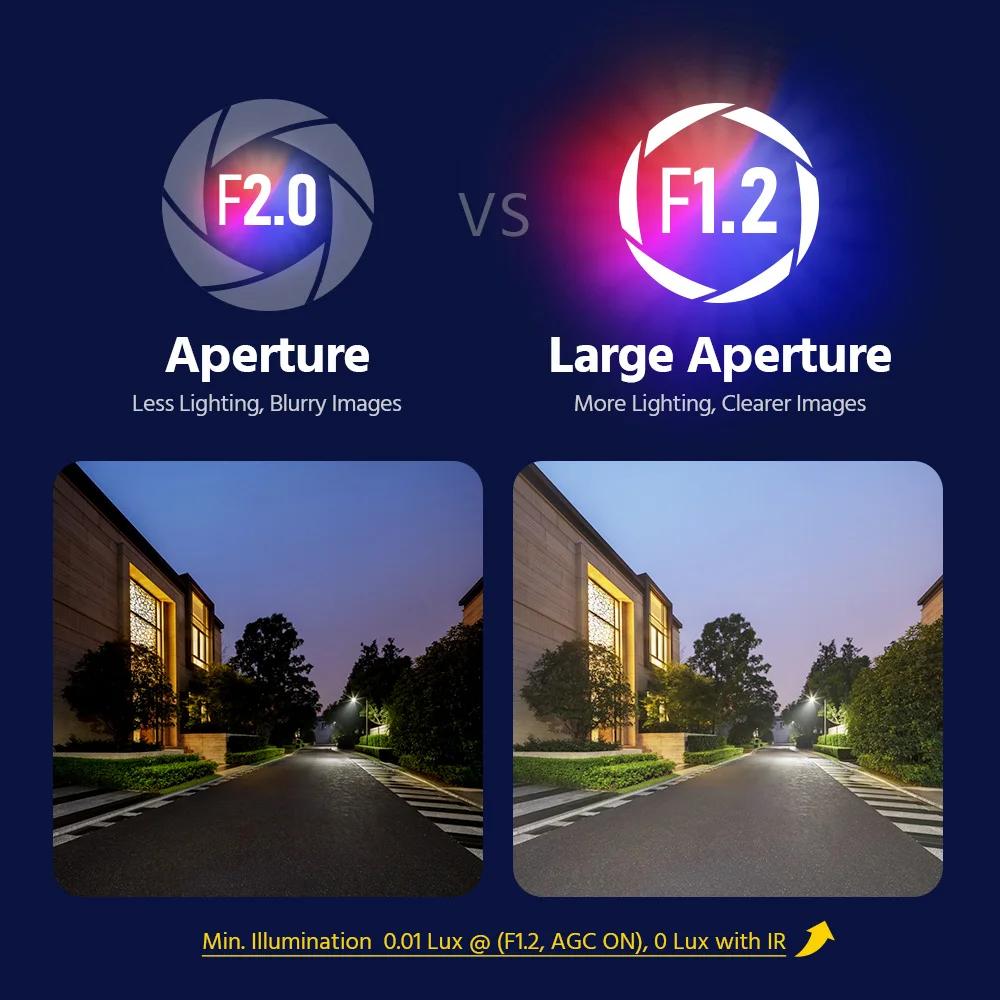

| Min.Illumination | Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | |

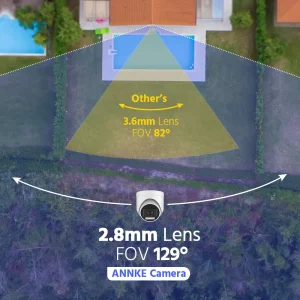

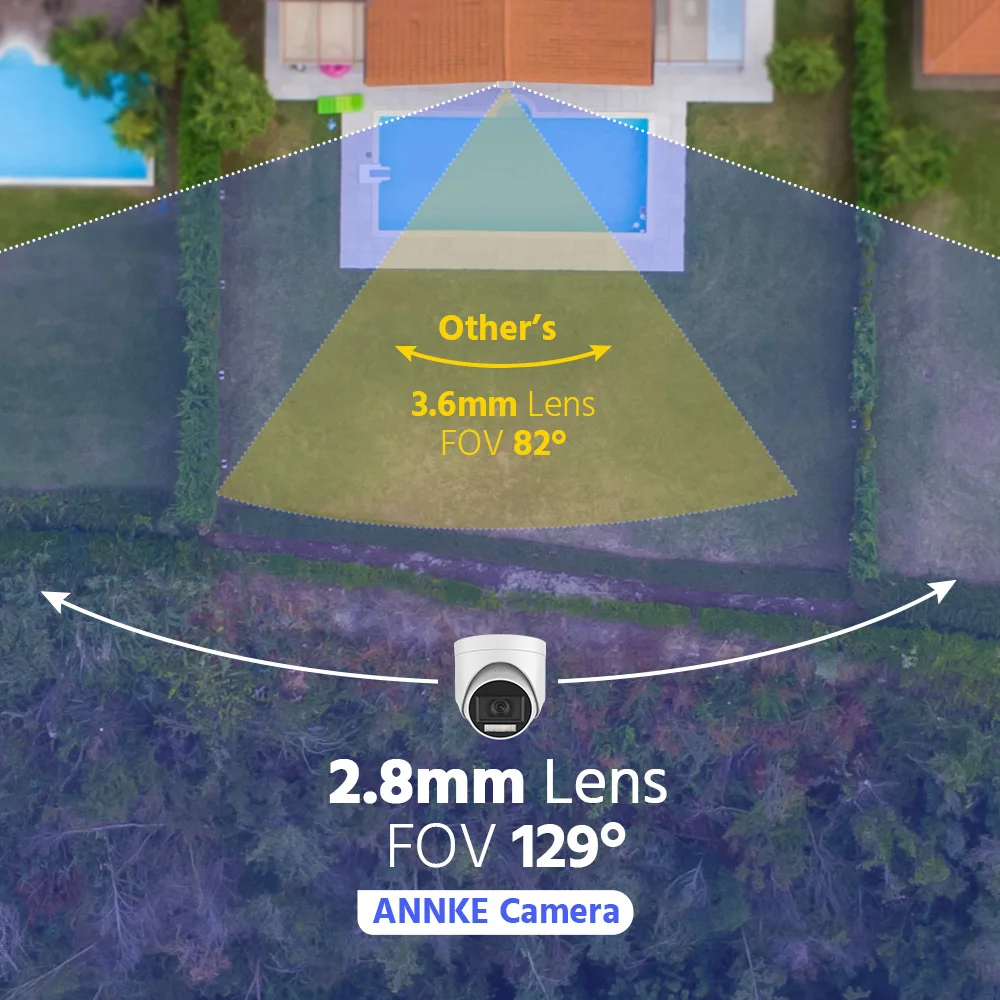

| Angle of View | Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129° | |
| Supplement Light type | 1 white Light & 1 EXIR | |

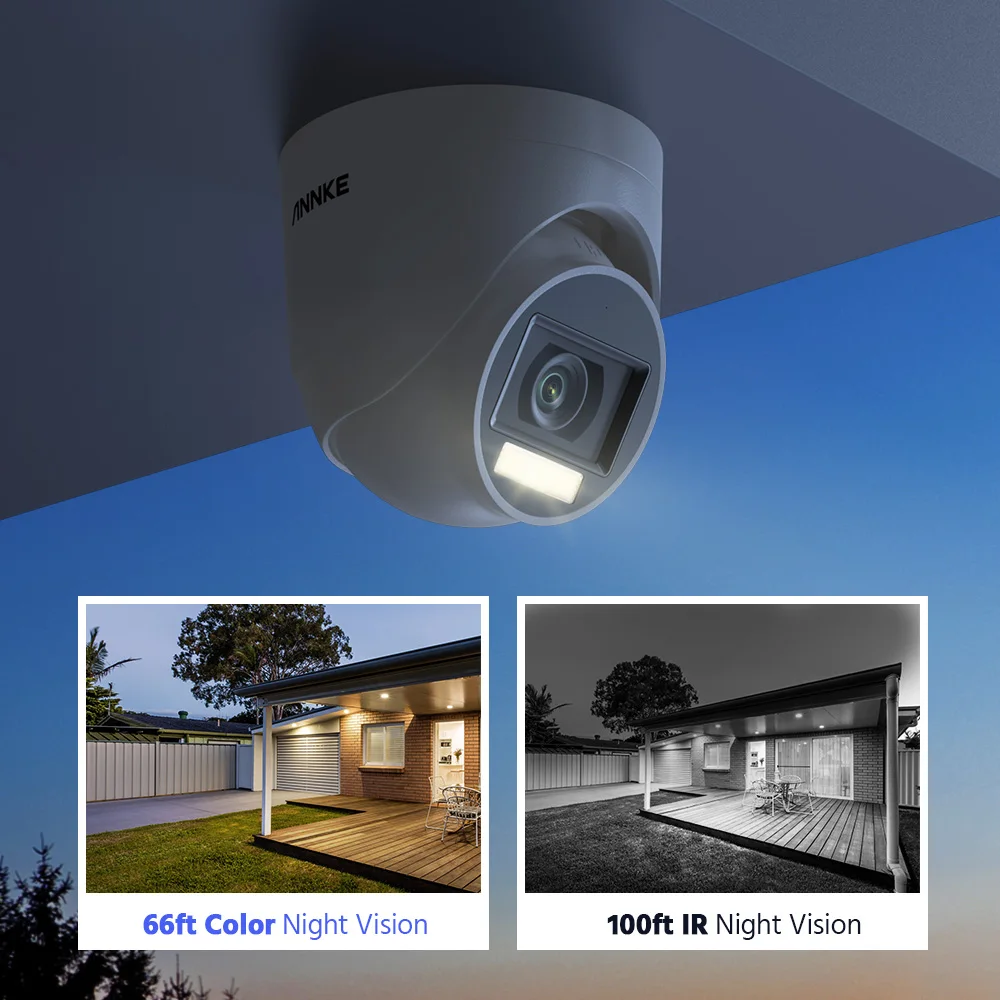

| Supplement Light Range | IR : Up to 30 m, white Light : Up to 20 m | |
| Supplement Light Mode | IR light works normally, and it switches to white light when human or vehicle are detected at night. | |
| Wide Dynamic Range | Digital WDR | |
| Audio | Built-in mic | |
| IR Cut Filter | Yes | |
| Video Output | BNC, switchable TVI/AHD/CVI/CVBS | |
| General | Housing | Matal & Plastic |
| Color | White | |
| Operating Power | 12 VDC ± 25% | |
| Consumption | Max. 2.9 W | |
| Operating Temperature | -40 °F – 140 °F /-40 °C – 60 °C | |
| Indoor/Outdoor | Indoor/Outdoor | |

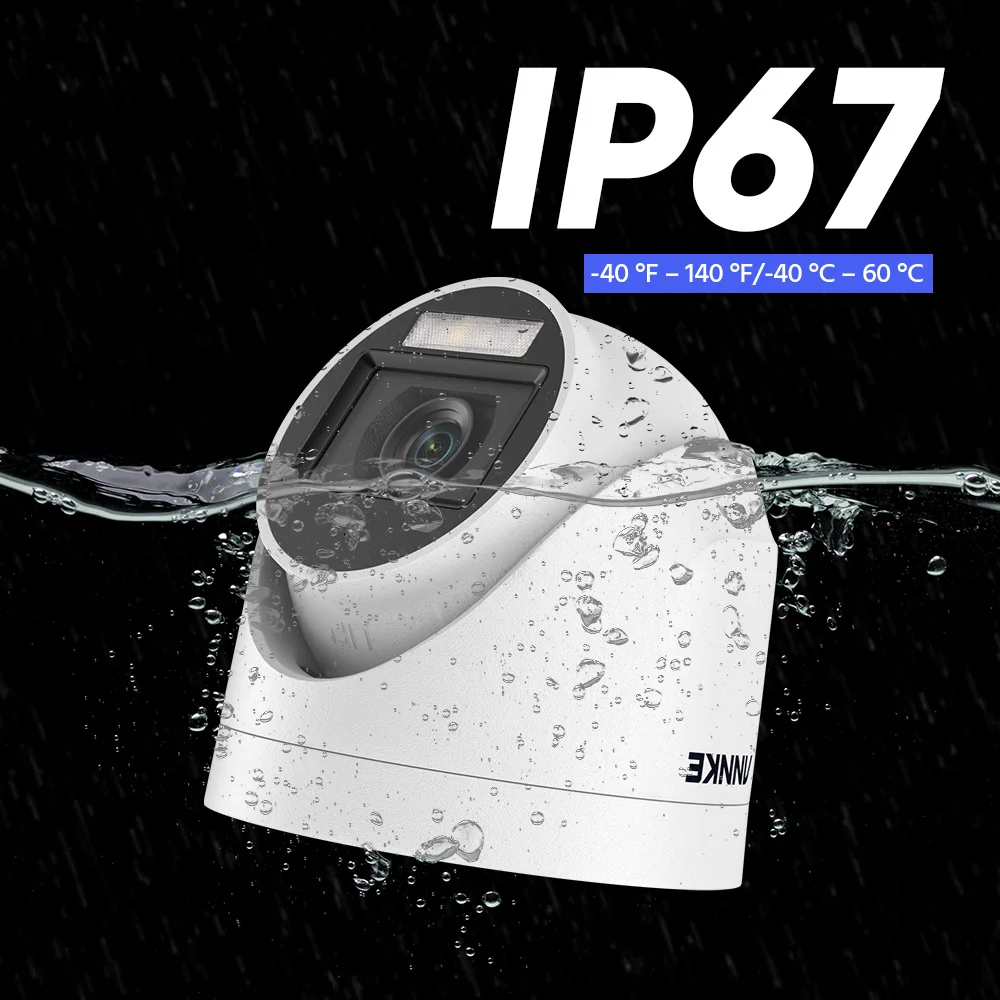

| Weatherproof Rating | IP67 | |
| Dimension (L x W x H) | 80 mm × Ø 85.1 mm (3.1″ × Ø 3.4″) | |
| Weight | Approx. 300 g (0.66 lb.) | |
| Build-in HDD | None, 2T, 1T, 4T |
|---|---|
| Ships From | United States |
| Color/Kits | 8CH DVR 8Pcs Kits, 8CH DVR 8Pcs Kits 1, 8CH DVR 8Pcs Kits 2, 8CH DVR 8Pcs Kits 3 |
